SY7304DBC QFN3x3-10 33V 4A
主要應用領域：
引腳兼容型號：
SY7304DBC.PDF
SY7304內置33V/4A MOS異步升壓轉換器
概述：
The SY7304 is a high efficiency, current-mode control Boost regulator. The device integrates a 120mΩ low RDS(ON) N-channel MOSFET for high efficiency. The fixed 1MHz switching frequency and internal compensation reduce external components size and count The build-in internal soft start circuitry minimizes the inrush current at start-up
The SY7304 is available in compact DFN3X3-10 package
特性：
Wide input range: 3-33V
Maximum output voltage: 33V
1MHz switching frequency
Integrated 120mΩ RDS(oN) switch with 4A peak current capability
Internal soft-start
0.6V±2% reference voltage
Cycle by cycle peak current limit
Over temperature protection
RoHS Compliant and halogen free
Compact package: DFN3X3-10

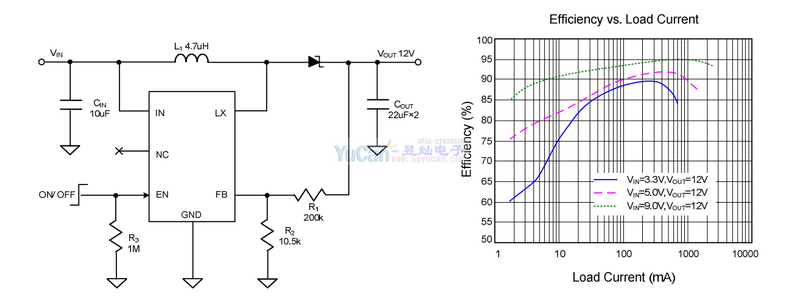

典型應用：
