SY8286 23V 6A輸入范圍高效同步降壓IC
SY8286ARAC QFN3x3-10

 SY8286A 內(nèi)置23V/6A MOS同步降壓轉(zhuǎn)換器

概述：

  The SY8286A develops a high efficiency synchronous step-down DC-DC regulator capable of delivering 6A current. The device integrates main switch and synchronous switch with very low Rds(on) to minimize the conduction loss

The SY8286A operates over a wide input voltage range from 4V to 23V. The DC-DC regulator adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light load. The device provides various protection features for reliable operation. In addition, it operates at pseudo-constant frequency of 600kHz to minimize the size of inductor and capacitor.

特性：

Low RDS(ON) for internal switches(top/bottom):38/19mΩ

Wide input voltge range: 4-23V

Instant PWM architecture to achieve fast transient responses

Internal 1.3ms soft-start limits the inrush current

Pseudo-constant frequency: 600kHz

6A output current capability

±1% internal reference voltage

PFM/PWM selectable light load operation mode

Optional bypass input

Power good indicator

Output discharge function

Output current limit protection

Hiccup mode output short circuit protection

Output over voltage protection

Input UVLO

Over temperature protection with auto recovery

RoHS Compliant and Halogen Free

Compact package: QFN3*3-20

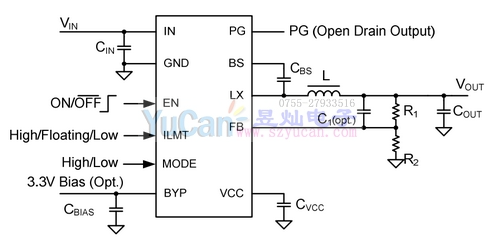

典型應(yīng)用：
